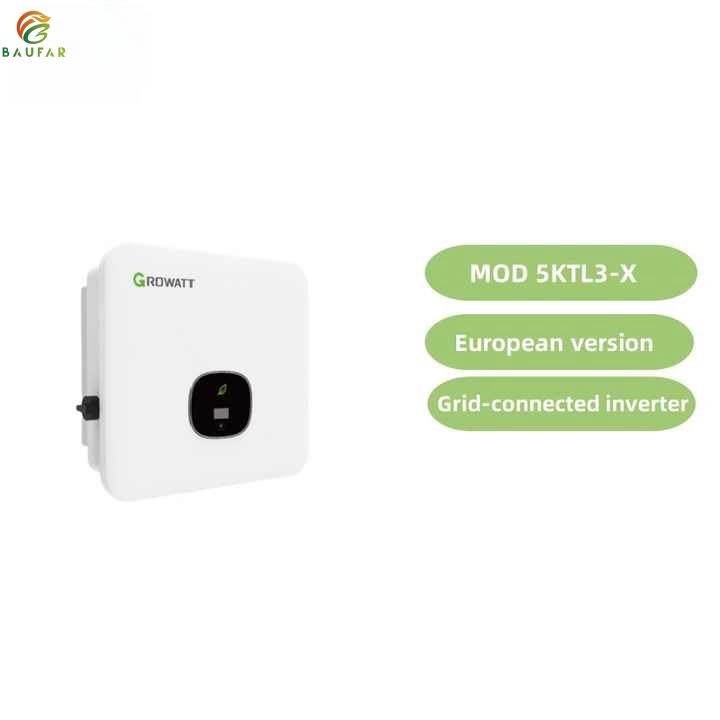

Growatt 5KW On-grid Inverter MOD 5KTL3-X

Growatt 5KW On-grid Inverter MOD 5KTL3-X

$623.00

Brand Name:Growatt

Model: MOD 5KTL3-X

Type:Three Phase

INQUIRY NOW

SKU: MOD 5KTL3-X Category:

baufar-reviews-logos-01

Growatt 5KW On-grid Inverter MOD 5KTL3-X

  • Max. efficiency 98.6%
  • OLED and Touch button
  • Type II SPD on DC and AC side
  • String Monitoring
  • AFCI optional





MODEL MOD 5KTL3-X
INPUT DATA (PV)
MAX. RECOMMENDED PV POWER 7500W.
START VOLTAGE 160V
MAX. DC VOLTAGE 1100V.
NOMINAL VOLTAGE 580V.
MPP VOLTAGE RANGE 140V-1000V.
NO. OF MPP TRACKERS 2.
NO. OF PV STRINGS PER MPP TRACKER 1.
MAX. INPUT CURRENT PER MPP TRACKER 13A.
OUTPUT DATA(AC)
AC NOMINAL POWER 5kW
MAX. AC APPARENT POWER 5.5kVa
NOMINAL AC VOLTAGE 220V/380V, 230V/400V (340-440V).
NOMINAL AC GRID FREQUENCY 50/60 Hz (45-55Hz/55-65 Hz).
MAX. OUTPUT CURRENT 8.3A
ADJUSTABLE POWER FACTOR 0.8leading…0.8lagging.
THDI <3%
AC GRID CONNECTION TYPE 3W+N+PE.
EFFICIENCY
MAX.EFFICIENCY 98.3%.
EUROPEAN EFFICIENCY 97.5%
MPPT EFFICIENCY 99.9%.
PROTECTION DEVICES
DC REVERSE POLARITY PROTECTION Yes.
DC SWITCH Yes
AC/DC SURGE PROTECTION Type III / Type III.
INSULATION RESISTANCE MONITORING Yes
AC SHORT-CIRCUIT PROTECTION Yes
GROUND FAULT MONITORING Yes
GRID MONITORING Yes
ANTI-ISLANDING PROTECTION Yes
RESIDUAL-CURRENT MONITORING UNIT Yes
AFCI PROTECTION Optional.
GENERAL DATA
DIMENSIONS (W / H / D) 425/387/147mm.
WEIGHT 12.5kg
OPERATING TEMPERATURE RANGE –25°C … +60°C.
NIGHTTIME POWER CONSUMPTION < 0.5W
TOPOLOGY Transformerless.
COOLING Natural convection
PROTECTION DEGREE IP65
RELATIVE HUMIDITY 0-100%
ALTITUDE 4000m
DC CONNECTION H4/MC4(Optional)
AC CONNECTION Connector
DISPLAY OLED+LED/WIFI+APP
INTERFACES: RS485 / USB/WI-FI/
GPRS/ RF/LAN
Yes/Yes/Optional.
WARRANTY: 5 YEARS / 10 YEARS Yes /Optional.
