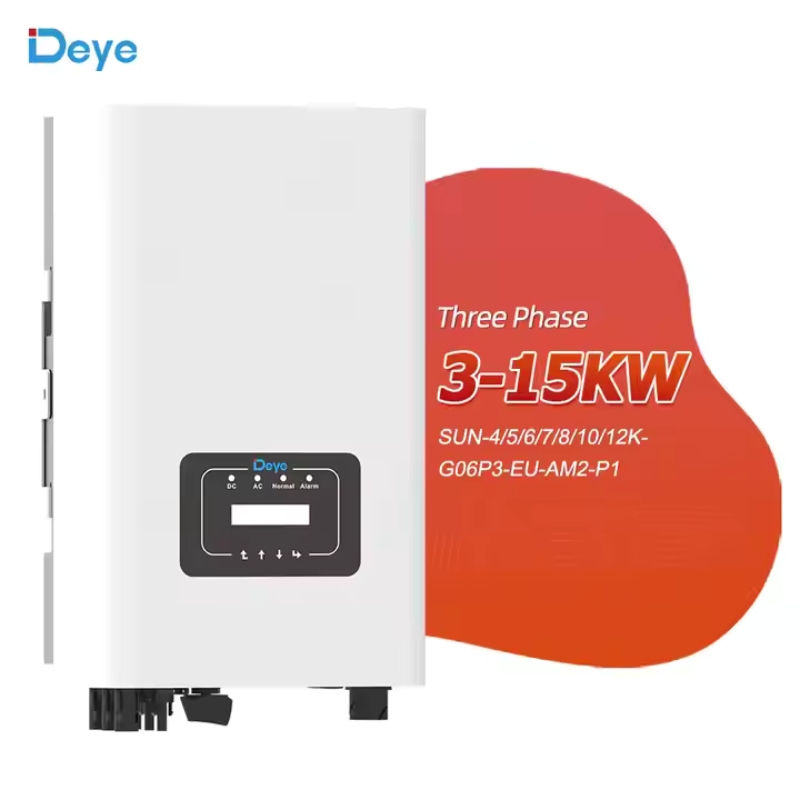

Deye Grid Tied Inverter SUN-12K-G06P3-EU-AM2-P1 Three Phase
- Higher yields
- Safe & Reliable
- Smart
- User-friendly
| MODEL |
SUN-12K-G06P3-EU-AM2-P1 |
| PV String Input Date |
|
| Max. PV Input Power |
18kw. |
| Max. PV Input Voltage |
1100v |
| Start-up Voltage |
140v |
| MPPT voltage range |
120-1000v |
| Rated PV Input voltage |
600v |
| Max. Operating PV Input Current |
20+20A |
| Max. Input Short Circuit Current |
30+30A. |
| No. of MPP Trackers |
2/1+1 |
| Output Data(AC) |
|
| Rated AC Output Active Power |
12kW |
| Max. AC Output Apparent Power |
13.2kVa |
| Rated AC output current |
18.2/17.4A |
| Max. AC Output Current |
20/19.2A |
| Rated output voltage/range |
220/380V, 230/400V 0.85Un-1.1Un. |
| Grid Connection Form |
3L/N/PE |
| THDi |
<3% (@100% load). |
| Rated Output Grid Frequency/Range |
50/45-55, 60/55-65HZ |
| DC Injection Current |
<0.5%ln |
| Max. Efficiency |
98.3%. |
| MPPT Efficiency |
>99% |
| DC Polarity Reverse Connection Protection |
Yes |
| AC Output Overcurrent Protection |
Yes |
| DC Component Monitoring |
Yes. |
| Ground Fault Current Monitoring |
Yes |
| Overvoltage Load Drop Protection |
Yes |

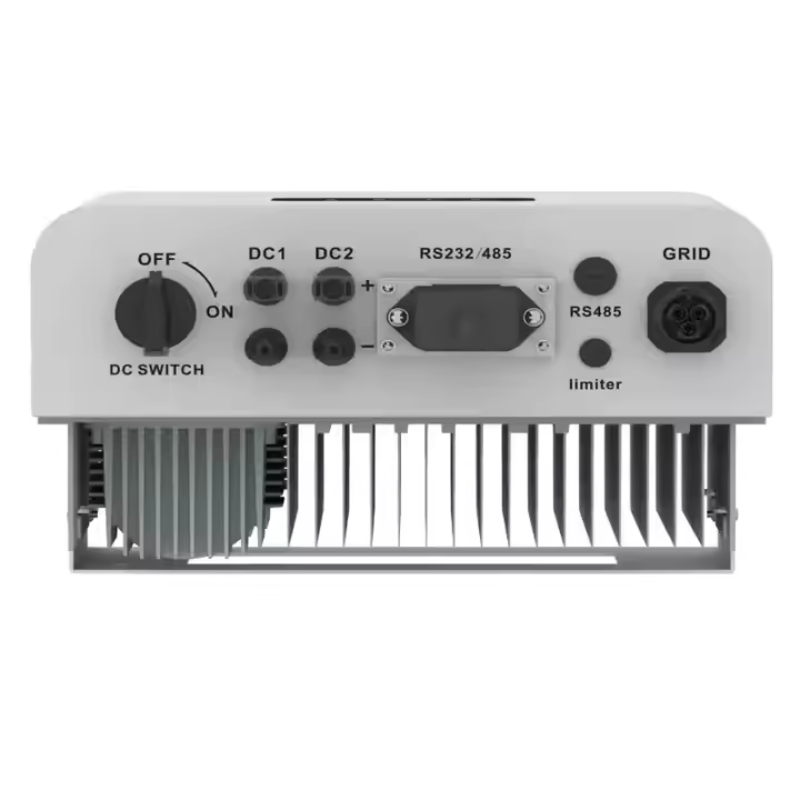

| Communication Interface |
RS485/RS232. |
| Operating Temperature Range |
-25 to +65℃, >45℃ Derating |
| Permissible Ambient Humidity |
0~100% |
| Permissible Altitude |
2000m |
| Dimensions (W/H/D) |
2830×4630×1780mm |
| Weight |
11kg |
| Noise |
≤ 45 dB |
| Type Of Cooling |
natural cooling |
| Operating temperature range |
–30 °C~60 °C (> 50°C, derating). |
| Inverter Topology |
Non-Isolated |
| Over Voltage Category |
OVC II(DC),OVC III(AC). |
| Ingress Protection(IP) Rating |
65 |
| Warranty |
5 Years. |
| Safety / EMC standard |
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2. |
Grid Regulation
IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
OVE-Richtlinie R25,G98, G99,VDE-AR-N 4105
Deye Grid Tied Inverter SUN-12K-G06P3-EU-AM2-P1 Certificate_spain+rd647+rd413+rd1699
