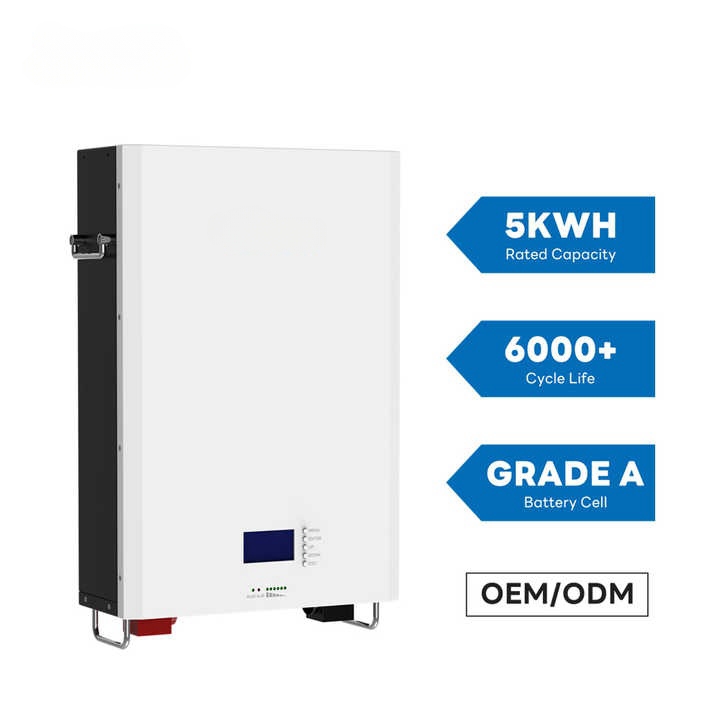

51.2V 100Ah 5KWh Wall-mounted Lifepo4 Battery

Name: 51.2V 100Ah 5KWh Wall-mounted Lifepo4 Battery
SKU: BAU-W-51100
Availability: InStock

Wall Mounted Energy Storage Lithium-Ion Battery

Wall-mounted LiFePO4 lithium batteryBattery

51.2V 100Ah 5KWh Wall-mounted Lifepo4 Battery

$576.00

Model: BAU-W-51100
Battery Type: LiFePo4 Battery
Rated voltage（v）: 51.2V
Rated capacity(Ah/10hr) :100AH
Certification: CE, UN38.3, MSDS, IEC

SKU: BAU-W-51100 Category: LiFePO4 Battery

Description
Reviews (0)

51.2V 100Ah 5KWh Wall-mounted Lifepo4 Battery

–?Flexible Investment: 5kWh/10kWh modular design, scalable from 5 to 150kWh TUV.
–?Certification: Battery IEC/UL standard.
–?Perfect Compatibility: Compatible to most inverter brands on the market.
–?Safety: BMS & Breaker two levels over current protection.

MODEL	BAU-W-51100
PRODUCT NAME:	51.2V100Ah Battery
CELL COMBINATION	16S1P
CYCLE LIFE	6000 cycles @80% DOD, 0.5C
RATE VOLTAGE(VDC)	51.2v
RATE CAPACITY(AH)	100a
ENERGY STORAGE(KWH)	5.12kwh
CHARGE VOLTAGE	56V
MAX. CHARGE CURRENT(A)	100A
MAX. DISCHARGE CURRENT(A)	100A
DISCHARGE CUT-OFF VOLTAGE(VDC)	43.2V
CHARGE CUT-OFF VOLTAGE(VDC)	58.4V
CHARGE TEMPERATURE	0 ℃ to 55℃
DISCHARGE TEMPERATURE	-25 ℃ to 55℃
STORAGE TEMPERATURE	-20℃ to 55 ℃
IP CLASS	IP21
MATERIAL SYSTEM	LiFePO4
PACK DIMENSIONS LWH(MM)	580390185
PACKAGE DIMENSION LWH(MM)	660450240
NET WEIGHT(KG)	44
GROSS WEIGHT(KG)	49
PROTOCOL	CAN/RS485/RS232
CERTIFICATE(PACK)	UN38.3, MSDS,CE-EMC
